Product Detail

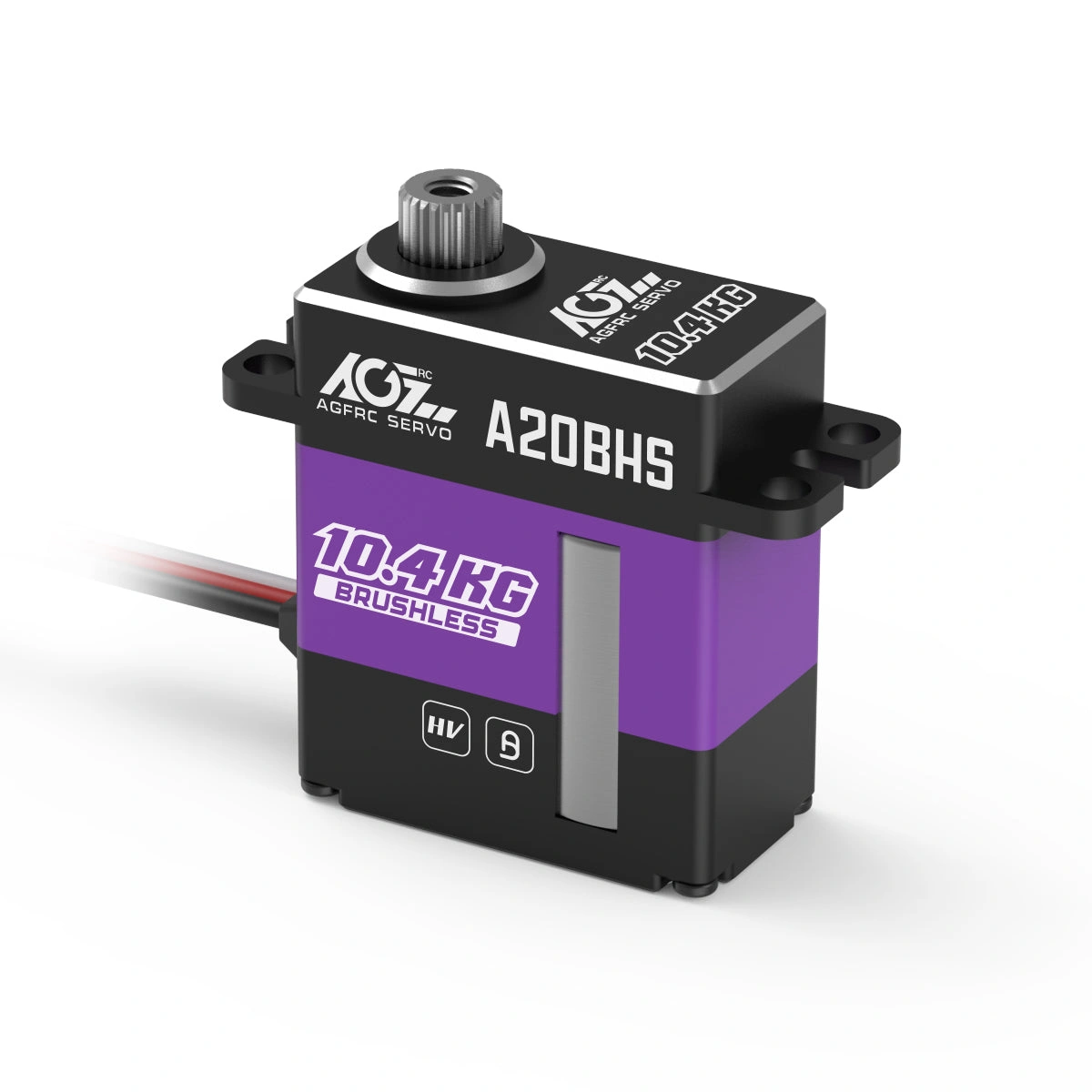

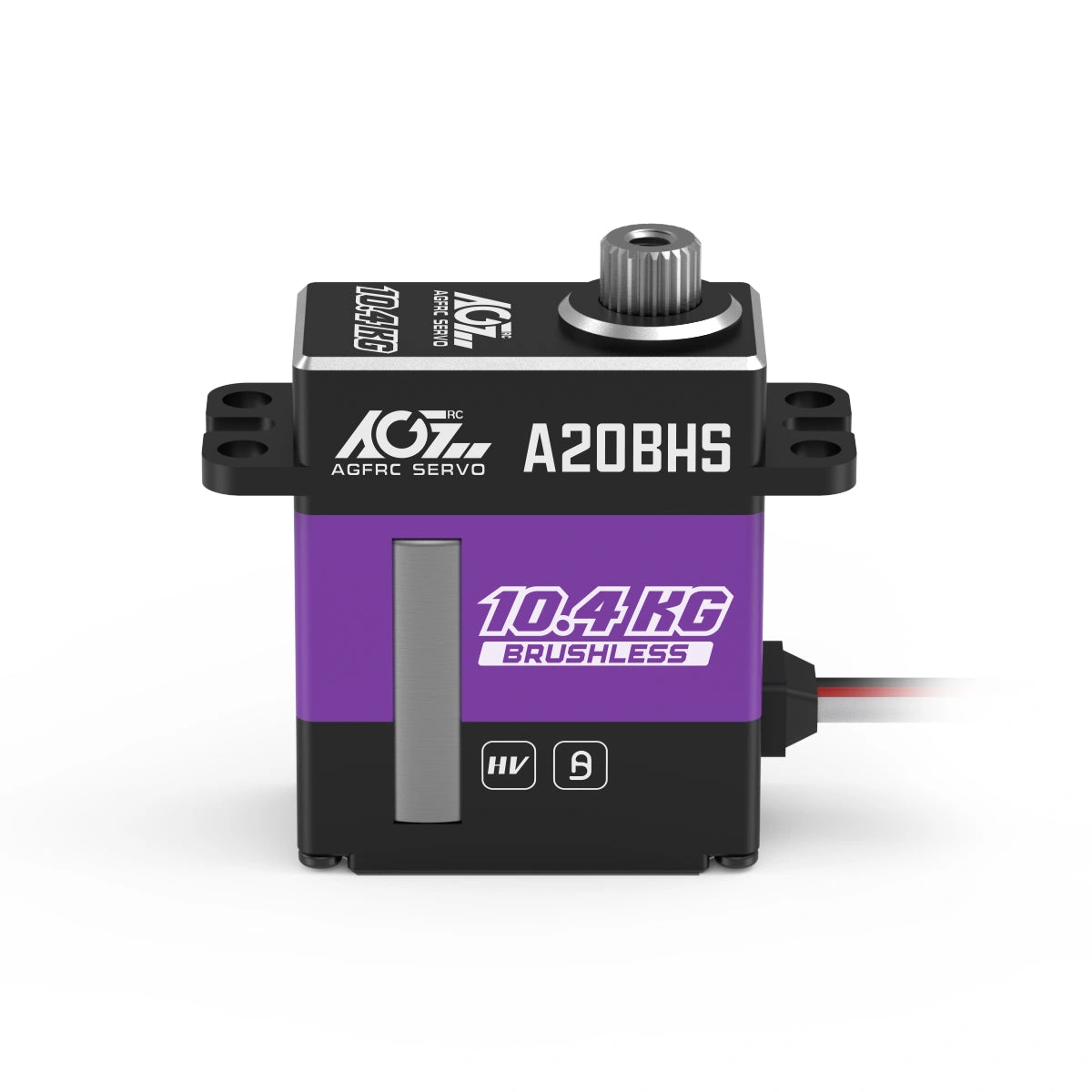

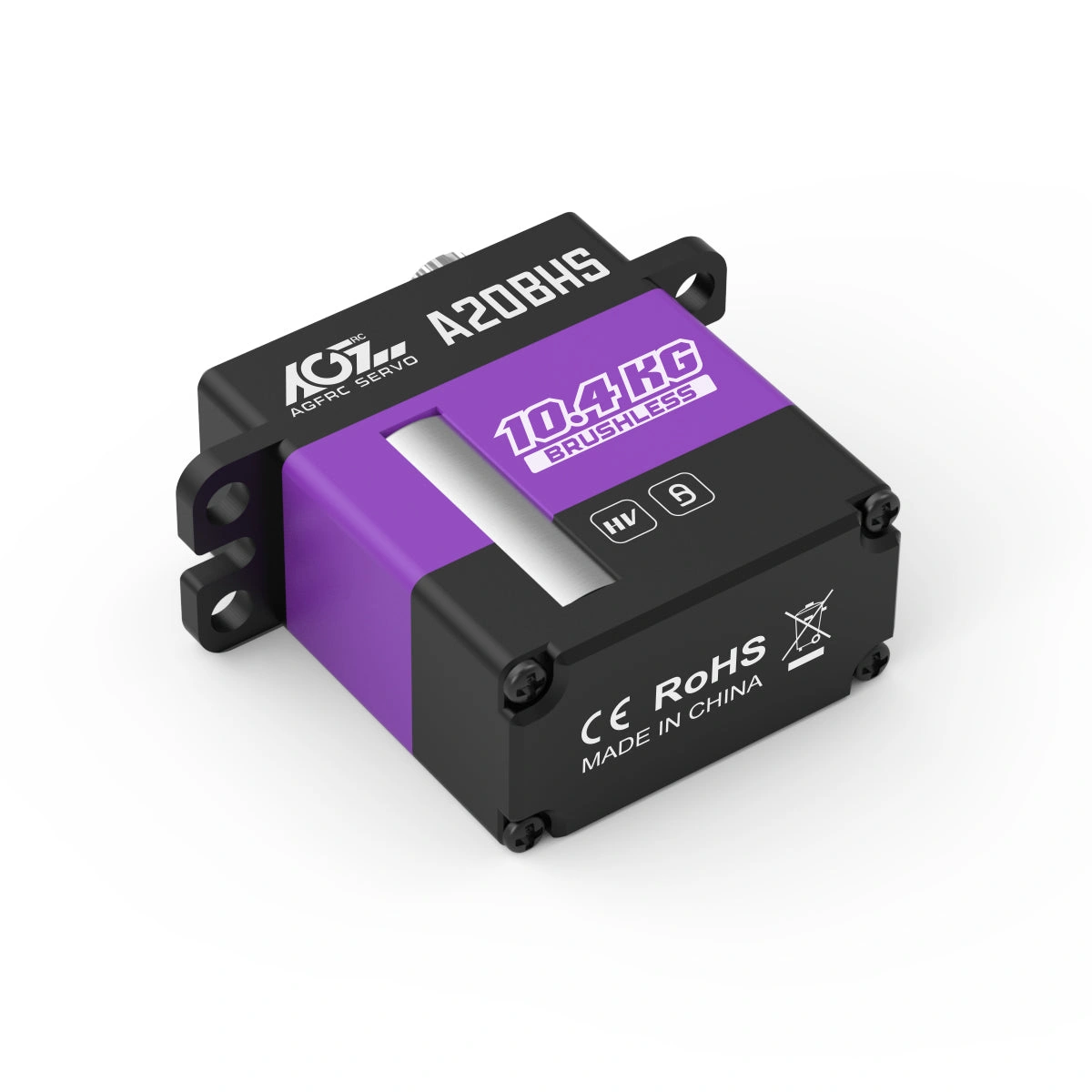

As a new arrival of AGFrc mini servos, A20BHS can reach the torque of 10.4kg and 0.055sec fast speed. Full CNC aluminium case to provide the good heat dissipation conditions, featuring a digital programmable circuit high voltage compatible. The biggest special about this new digital programmable servo A20BHS is that it used a newly designed brushless motor, which AGFrc first released and marketed. With the more efficient brushless motor and high accuracy, this high-performance servo A20BHS is perfect for RC cars and other applications.

Feature

High Performance Programmable Mini Servo

Longer Lifespan Brushless Motor

Full CNC Aluminium Housing

Sturdy Metal Double Ball Bearings

Special Small Size Design

High-Voltage Capable

Ideal for 1/24 scale RC Monster Car, Crawler Car, SCX10.3, SCX24, Racing Car, RC Airplane etc.

Specification

Item: A20BHS

Operating Voltage: 4.8-8.4V

Operating speed: 0.085sec/ 60° @ 4.8V

Operating speed: 0.075sec/60° @ 6.0V

Operating speed: 0.062sec/60° @ 7.4V

Operating speed: 0.055sec/60° @ 8.4V

Stall Torque: 6.50 kg-cm (90 oz-in) @ 4.8V

Stall Torque: 7.80 kg-cm (108 oz-in) @ 6.0V

Stall Torque: 9.20 kg-cm (127 oz-in) @ 7.4V

Stall Torque: 10.40 kg-cm (144 oz-in) @ 8.4V

Gear: Strength Steel + Copper

Motor：Brushless

Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)

Weight: 21g

Connector Wire: TYU 180mm / 26AWG
